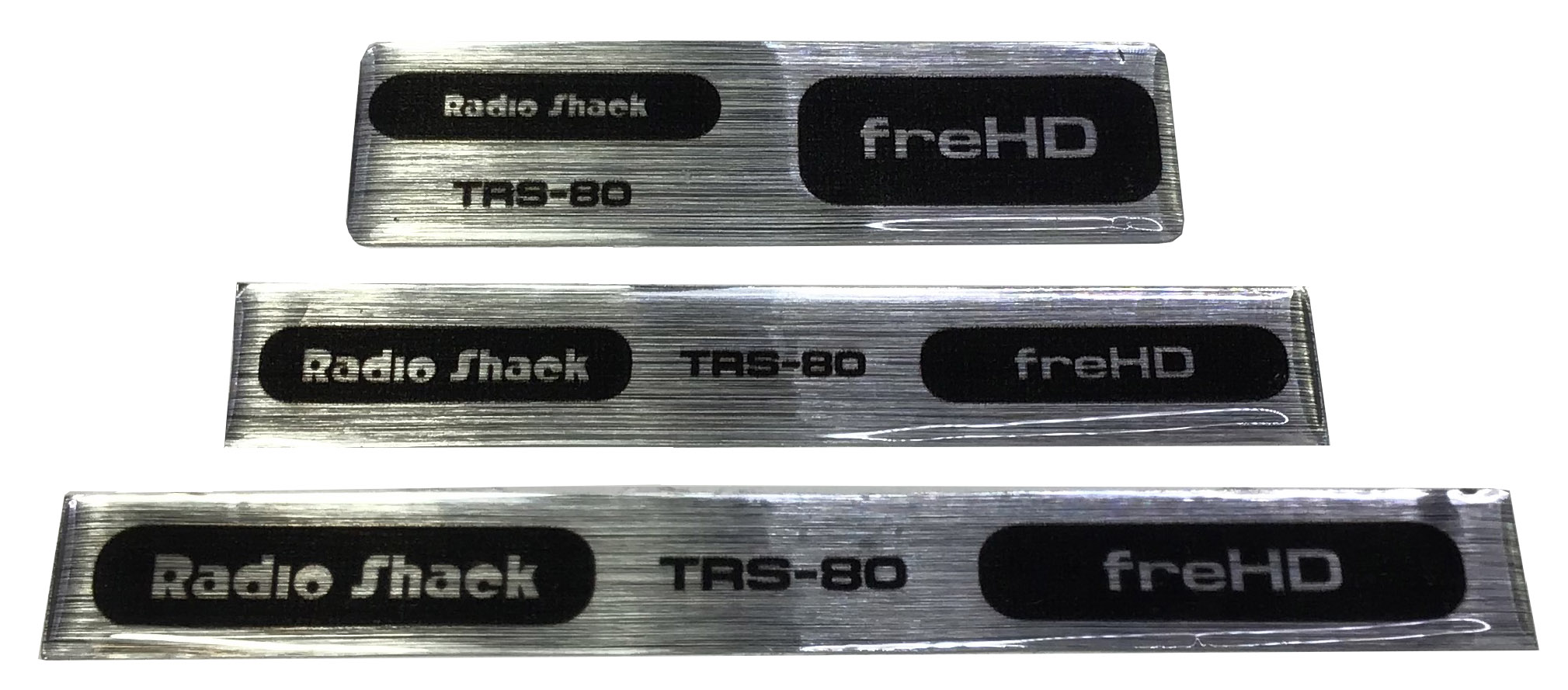

FreHD Badges

If you need a replacement badges for your Hard Drive, NewSoft sells them for a very reasonable price.

TRS-80 Model I Hard Disk Adapter Board

Hard Disk Adapter Board

TRS-80 Model I’s require an adapter board to adapt the 40-pin connector on the Model I Expansion Interface to a 50-pin connector for hard drives.

Since these boards are virtually impossible to find today, Ian Mavric has created an adapter board, so those with Model I’s can connect to a real TRS-80 hard drive or a FreHD Hard Drive emulator.

The cost for the fully-assembled board (including the TRSHD15/DCT and TRSFRM15/CMD drivers) is $50.00 + Shipping.

The ideal system is a 48K Model I Disk system (in good condition) running LDOS v5.3.1 with a TRS-80 5MB or 15MB Hard Drive.

Contact Ian on ianm@trs-80.com

Lo-tech TRS-80 IDE Adapter rev.2

Lo-tech TRS-80 IDE Adapter rev.2

The Lo-tech TRS-80 IDE Adapter rev.2 is an external IDE storage adapter for the Tandy TRS-80 model 3/4/4P, enabling connection of standard IDE drives (and CompactFlash cards, with an adapter). Based entirely on 7400 series logic and through-hole components, the design offers a low-cost, self-assembly storage option for these machines.

It is bootable on a Model 4P using a patched ROM.

Full information (including parts list and more detail) can be found at Lo-tech‘s web site.

Kit can be purchased at the Lo-Tech Store.

FreHD – Hard Drive Replacement for a REAL Model I/III/4


Frederic Vecoven and Ian Mavric have developed, designed, and now sell a Model I and Model III/4 hard drive replacement called FreHD. The FreHD is a circuit board which accepts a SD card and looks like an actual hard drive to a TRS-80 Model I/III/4.

DOS’s Supported:

  • Model I: LDOS 5.3.1
  • Model III: LDOS 5.3.1
  • Model 4/4P: LS-DOS 6.3.1, Montezuma CP/M 2.2

Additional Information:

  • Model I: Requires Model I hard disk adapter board (below)
  • Diskless Systems: A version now exists for Model III/4 systems which are cassette only
  • Model 4P: Can auto-boot from the FreHD without needing a floppy drive.
  • TRS32 Emulator: Starting with v1.28, registered copies of Matthew Reed’s Model I/III/4 emulator “TRS32” can read and write hard drive images used by the FreHD hard drive adapter, allowing PC manipulation of the drive which can then be used in the real TRS-80.

Purchase Options:

  • Kit A: Just the bare PCB and a CD of dropbox data and is best suited to hard-core electronics enthusiasts who have the equipment to program GAL and PIC chips. All parts need to be supplied by the builder, and a complete BOM list is provided.
  • Kit B: The PCB, and programmed GAL and PIC, SD card socket, battery holder, and a CD dropbox of data. This kit suits people capable of soldering together a project kit of some complexity. All parts apart from the PCB, GAL, PIC, SD socket and battery holder need to be supplied by the builder, and a complete BOM is provided.
  • Kit C: Fully assembled kit, tested, partitioned and loaded with DOS ready to plug into your Model III, 4, 4D or 4P. Boot floppy disk provided. Just connect it to a 5V power source, a hard drive cable, and boot the floppy.
  • Cable: To connect the emulator or a regular TRS-80 hard drive to a Model III/4/4D/4P (NOTE: if you already have a TRS-80 hard drive you don’t need this cable).


Compares the FreHD with an actual TRS-80 MFM Hard drive

Shows what comes with Kit C, how to connect it and get booted up

Shows CP/M 2.2 running on FreHD

Shows 4P auto-boot LS-DOS 6.3.1 and CP/M 2.2

Shows FreHD working on the TRS-80 Model I

Self booting without floppy disks and a menu to choose a DOS image

FreHD M1 mounted in a Dragon external disk drive case

FreHD in a diskless (cassette based) Model III
