TRS-80 Computers: Printers

TRS-80 WP-50 Daisy Wheel I
$2,960.00

The new TRS-80 WP-50 Daisy-Wheel printer is designed specifically for Word Processing, and to produce the crip, clean, look of the best electronic typewriters, but at almost twice the speed of most. The type faces are changeable as in “ball” type-writers, and of course a carbon-film ribbon is standard. It attaches to the Expansion Interface printer connector, or can be connected directly to any Level II TRS-80 using a Printer Interface Cable.

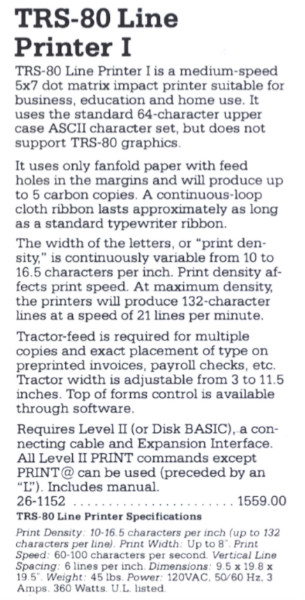

TRS-80 Line Printer I
26-1150 (Friction)
26-1152 (Tractor)
$1,299.00
$1,559.00

TRS-80 Line Printer I is a medium speed 5×7 dot matrix printer suitable for business, education, and home use. It uses the standard 64-character upper case ASCII character set, but does not support TRS-80 graphics.

It uses only fanfold paper with feed holes in the margins and will produce up to 5 carbon copies. A continuous-loop cloth ribbon lasts approximately as long as a standard typewriter ribbon.

The width of the letters, or “print density” is continuously variable from 10 to 16.5 characters per inch. Print density affects print speed. At maximum density the printers will produce 132-character lines at a speed of 21 lines per minute.

Tractor-feed is required for multiple copes and exact placement of type on preprinted invoices, payroll checks, etc., Tractor width is adjustable from 3 to 11.5 inches. Top of forms control is available through software.

Requires Level II (or DISK BASIC), a connection cable and Expansion Interface. All Level II PRINT commands except PRINT@ can be used (preceded by an “L”). Includes manual.


Screen Printer
$599.00

A remarkable, low-cost concept in hard copy! Amazingly fast and amazingly simple. Just touch a button – whatever is shown on your video screen (including graphics) is printed on 4″-wide paper. Requires only 4K RAM and Level I BASIC, so you can run it right off the standard TRS-80 as is! Compact size!


Quick Printer
$499.00

RSC-2

For any job that requires a small, single-copy printout, our Quick Printer will fill the bill. It’s a fast. compact, low-cost line printer ideal for general use.

The Quick hinter delivers 160 lines per minute on a roll of 4.75-inch wide aluminum-finish paper. No ribbon is needed to produce a black-on-silver copy which makes excellent reproductions on office copiers. The paper is unaffectad by light, heat or humidity.

All TRS-80 keyboard characters (except arrows) can be printed. Upper and lower caseletters are printed, although they all appear as upper case on the monitor. TRS-80 graphics are not supported.

All Level-II line printer commands are used.

Characters are formed by a 5×8 dot matrix. Variable character width (20. 40, or 80 characters per line). automatic underlining and an audible signal are all fully software controllable.

Features paper-empty light, print select (or/off). paper advance and power or/off switch with pilot light. The Quick Printer requires the Expansion Interface, Level-II BASIC and a connecting cable.

RSC-3

Delivers 150 lines per minute on 4.75-inch wide aluminum-finish paper. No ribbon is needed. The paper is unaffected by light, heat, or humidity. Prints all keyboard characters (except arrows), and upper and lower case letters.

Graphics are not supported. Variable character widths (20, 40 or 80 characters per line), automatic underlining and an audible signal are all fully software controllable. All Level II line printer commands are used. Features paper-empty light, print select (on/off), paper advance and power on/off switch with pilot light. Requires either Expansion Interface, Printer Cable and Level II BASIC or Printer Interface Cable and Level II BASIC.

Specifications: Print Density: 20, 10, or 5 characters per inch, software selectable (80, 40 or 20 cpi). Print Speed: 150 lines per minute. Paper: Aluminum coated roll, 4.75″ wide by 131′ long. (Available through Radio Shack stores). Dimensions: 4 1/4 x 13 x 10 1/2″. 10 lbs. Power: 120 VAC, 60Hz, 40 Watts. U.L. Listed.


TRS-80 Line Printer II
$970.00

Prints 50 characters per second on 8-inch lines of 80 characters each. Also prints expanded (wide) letters under software control. Features upper and lower case letters in a 7×7 dot matrix format and will operate in both friction-feed and pin-feed modes. Continuous forms 9 1/2″ wide (original and up to two copies) are kept in precise alignment by nonadjustable pins built into the platen. Also prints single sheets. When used as a friction-feed unit, inexpensive roll paper fits in a detachable rear bail.

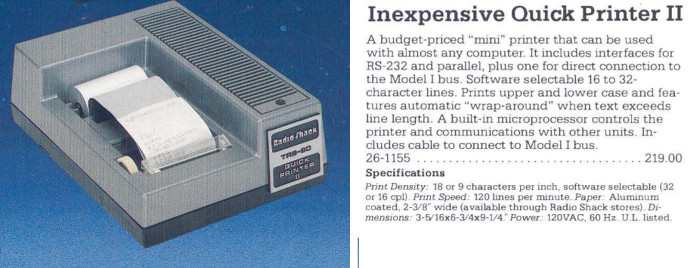

Quick Printer II
$219.00

A “mini” line printer priced to fit everyone’s budget. And best of all, it can connect directly to your TRS-80 – it needs no Expansion Interface. Software selectable for 16 to 32 character lines. Prints upper and lower case and features automatic “wrap around” when text exceeds line length, so there’s no data lost to overflow.

A built-in microprocessor controls the printer and communications with other units. With three interface choices, this versatile printer can be used on a variety of computers. Get low-cost, hard copy output on a 2 1/8″ wide roll of aluminum-coated paper. Includes cable to connect to CPU.


TRS-80 Line Printer III
$1,960.00

For applications requiring higher speed and full 13-inch wide, 132-character lines, Radio Shack’s new Line Printer III is the answer! This quiet, professional printer includes many outstanding features … even “self-test!”

9×7 dot matrix upper and lower case letters, as well as numbers, are printed at a fast 120 characters per second. For even faster “throughput,” the head prints in both directions as it moves across the paper. Accurate positioning of pre-printed forms such as invoices or checks is easy, with controls for line-feed in increments as small as 1/8th-line. Expanded (wide) characters may be software selected for headings or emphasis in your printed reports.

The fully adjustable tractor mechanism feeds contiunous forms of varying width up to a maximum of 15 inches, while assuring accurate alignment. Drive motors run only during actual printers, so Radio Shack’s Line Printer III can always be silently awaiting your print command, on either TRS-80 Model I or Model II.

For the finest in fast, versatile printers, specify Radio Shack’s all new, exclusive, Line Printer III.

Specifications: Print Density: 10 or 5 characters per inch, software selectable. Print Speed: 120 characters per second. Dimensions: 7-2/5 x 24-2/5 x 15-9/10″. Weight: 42 Pounds. Power: 120 VAC, 47 to 63 Hz, 85 Watts


Daisy-Wheel II
$1,995.00 [RSC-11]
$1,960.00[RSC-??]

Original Catalog Entry:

High-speed interchangeable character wheel and carbon ribbon give you the electric typewriter quality you need for your important word-processing jobs!

A friction-feed roller takes paper up to 16-1/2″ wide and up to 6 copies. 124 characters including underline plus reverse tab/line feed. Built-in self test. U.L. listed.

Specifications: Print Density: 10 characters per inch. 136 columns with supplied Courier print wheel. Print Speed: 43 characters per second, 19.5 lines per minute. Interface: Parallel. Ribbon Life: 200,000 characters; Print Wheel: 40 million characters. Dimensions: 8 x 24-3/5 x 15-1/2. Weight:28 lbs. Power: 120VAC, 50/60 Hz, 141 Watts. U.L. Listed.

Updated Catalog Entry:

For fast, superb quality printing depend on the TRS-80 Daisy Wheel II. With its high-speed interchangeable character wheel and carbon ribbon, you get the “electric typewriter” look you want for your important typewritten documents. And when you’re ready for a different character style, just snap in another print wheel. Each wheel provides clear, clean printing of up to 40-million characters. The printer features 124-character print wheels, forward and reverse paper feed and 1/2-line feeds, underline, backspace, friction-feed mechanism adjustable for up to 5 carbons, and switch selectable print densities (10 or 12 characters/in. or proportional pitch). Prints an average of 43 characters per second (500-plus words per minute). Comes supplied with Courier 10 print wheel. U.L. listed.

Specifications: Print Density: 13.6″ Line; Switch selectable 10 cpi (136 characters per line); 12 cpi(163 characters per line); or proportional spacing. Appropriate print wheels required for proper appearance. Print Speed: 43 cps Nominal; 19.5 LPM at 10 cpi, 132-col. (Approximately 500 words pre minute minimum). Carriage Motion: Unidirectional, logic seeking. Character Set: 124 (96 ASCII + international), 17 control codes. Paper: Up to 16″ paper, original plus 5 copies, friction fee. Ribbon: Multi-strike carbon cartridge – 250,000 nominal characters – may vary with text used. Nylon cartridge – 1.6 million characters. Interface: Standard 8 Data Bit paralell; 36-pin Ampenol connector. Power: 120 VAC, 50/60 Hz, 141 watts. U.L. listed. Size: 8 x 24-1/2 x 15-1/2″. Weight: 28 pounds.


TRS-80 Line Printer IV
$999.99

Produces upper/lower case characters approaching “letter quality” Prints 80 or 132 columns on 8 lines, or high-density proportionally-spaced Nx9 dot matrix characters under software control.

Handles roll paper 9-1/2″ fan-fold or single sheets with two carbons! Detachable roll paper holder. U.L. listed.

Specifications: Print Density: 10 or 16.7 characters per inch – proportional 8.2 to 24.6 characters per inch. Print Speed: 50 characters per second, 22 Lines per minute. Dimensions: 15 x 11 x 5″. Weight: 12 lbs. Power: 120VAC, 60 Hz, 100 Watts. U.L. Listed.


TRS-80 Line Printer V
$1,860.00

Designed for heavy business use. Bi-directional, logic-seeking head means high printing speed – up to 160 characters per second, sixty 132-column lines per minutes.

The 9-wire head prints a full complement of upper and lower case English and European letters (with descender), plus block graphic patterns. Four software-selectable print densities and three line densities, plus boldface and underline. Built-in tractor mechanism insures correct alignment for multi-page printouts. Paper advance in fine-line increments for aligning preprinted forms. Handles paper from 4 to 15-in wide with as many as four carbons. Automatic Paper-Our sensor will stop the printer automatically if the paper runs out. Includes standard parallel interface for easy connection to TRS-80 microcomputers. Manual controls for Line-Feed, 1/8 Line (Fwd/Rev) , Self-Test, On-line, Off-Line switch.

Specifications: Print Density:5, 7.5, 10, 15 plus Bold 10 cpi, software selectable. Print Speed: 160 characters per second, 60 lines per minute. Dimensions: 7-2/5 x 24-2/5 x 15-9/10″. Weight: 42 lbs. Power: 120VAC, 60 Hz, 85 Watts.


TRS-80 Line Printer VI
$1,160.00

A price breakthrough! Full 132 column printer at an unheard of low price. Low-profile styling and small size make this an ideal printer for Model III.

Print Nx9 upper and lower case characers in 4 print sizes, as well as many graphic characters and special symbols. Bidirectional logic-seeking printhead. Uses 4″ to 14-7/8″ fanfold or single-sheet paper of up to 3 sheets. Built-in self-test. Removable, adjustable forms tractor included. U.L. Listed.

Specifications: Print Density: 10 characters per inch; 5, 7.5, 15 characters per in optional. Print Speed: 100 characters per second, 33 lines per minute. Dimensions: 24-1/5 x 6-3/10 x 13-3/10″. Weight: 28 lbs. Power: 120VAC, 60 Hz, 85 Watts.


TRS-80 Line Printer VII
$399.00

The benefits of a much higher-priced printer! Serial interface works directly with Color Computer. Bit Image mode allows printing of hgih-density graphic information, similar to that on the Color computer screen.

Prints 80 upper and lower case 5×7 matrix characters on an 8″ line. Provides paralell interface for use with Models I, II, III. Adjustable tractor, 4-1/2 to 9-1/2″. Uses standard 9-1/2″ fanfold paper. Includes re-inking ribbon cassette. U.L. listed.

Specifications: Print Density: 5 or 10 characters per inch. Graphic Density: 3780 dots/sq. in. Print Speed: 30 characters per second, 16 lines per minute. Character Set: 96 ASCII. Bit Image: 480 addressable 7-dot cols. Dimensions: 5.32 x 16 x 8.25″. Weight: 8.6 lbs. Power: 120VAC, 60 Hz, 85 Watts.


TRS-80 Line Printer VIII
$799.00

A compact, high-density dot-matrix impact printer! The 9-wire head prints near letter-quality, proportionally-spaced characters in each line. Good-looking 9×8 monospaced characters, normally at 10 cpi (80 char. per line), can be elongated or condense. Proportional characters and bit image dot information can be elongated – offering a wide range of character styles.

Features full or half-line forward and revers; underline capability; superscript, subscript capability; upper and lower case English letters, European symbols, and block graphic characters; selectable parallel orserial interface. Uses 9-1/2″ fanfold, sing sheet, and roll paper. On-Line/Off-Line, Restart/Reset controls, Powert LED. U.L. listed.

Specifications: Print Density: 4.35 to 22.2 characters per inch. Graphic Density: 4320 dots/sq. in. Print Speed: 40 to 100 characters per second, 23 80-col. lines per minute. Character Set: 96 ASCII + 32 international and 30 graphic. Bit Image: 480 addressable double 7-dot cols. per line. Fixed Pin Feed: for Standard 9-1/2″ fanfold paper. Dimensions: 4.7 x 15.4 x 11″. Weight: 16.5 lbs. Power: 120VAC, 60 Hz, 85 Watts.


TRS-80 Plotter/Printer
$1,460.00

Original Catalog Entry: This intelligent plotter responds to simple BASIC commands to produce complex graphic plots up to 7-1/2″ wide and any length.

Character printing allows plotter to be used as a standard printer plus characters can be printed enlarged and/or rotated. Standard parallel interface. No ribbon, uses replaceable pen. U.L. listed.

Specifications: Print Density: 9 characers per inch, 75-column line in standard mode. Print speed: 5 lines per minute horizontal. Bi-directional feed under software control with stepper drive. Dimensions: 8-3/4 x 14-4/5 x 7-1/2″ Weight: 26 pounds. Power: 115VAC, 50/60 Hz, 100 Watts. U.L. Listed.

Updated Catalog Entry:

The TRS-80 Plotter/Printer can be programmed with simple BASIC LPRINT statements to draw a wide assortment of straight or curved lines and geometric figures, as well as the standard ASCII text characters. The writing device? An easily replaceable ballpoint pen! Features include four character sizes and rotations, front panel control of pen and paper motion and simple vector commands for drawing varied straight lines, arcs, circles, triangles and rectangles. U.L. listed.

Specifications: Printing speed: Average 10 characters/second. Step Speed: 667 steps/sec. Step Size: 0.095525 mm. X&Y axes. Characters/Line: 80 char./7.3″ Paper Size: 9″ roll paper. Life of Ballpoint Pen: Approx. 500,000 characters. Power Requirements: 120 VAC, 60 Hz. Dimensions: 6-3/4 x 16 x 12-3/5″. Weight: 13.2 lbs. without paper.


TRS-80 Multi-Pen Plotter
$1,995.00

The new TRS-80 Multi-Pen plotter brings an afforable price to color graphics! Comes with six standard ballpoint color pens – red, black, blue, green, violet and orange. RS-232 serial interface.

Features include automatic pen selection, chart hold down, touch panel pen motion controls. Simple BASIC commands draw varied straight lines, arcs and circles. Includes exclusive software for Model II and III, to draw line charts, pie charts, bar charts, saves and recalls, graphs, more. U.L. listed

Specifications: Paper Size: 8.5 x 11″. Plot Size: 7 x 10″. Step Speed: 600 Steps/Sec. Step Size: 200/in. Power Requirements: 115VAC, 50/60 Hz. Dimensions: 6 x 13-1/2 x 10-1/2″. Weight: 20 pounds.


CGP-115 Color Graphics Printer
$249.95
$199.95 [RSC-11]

Creates beautiful graphics in red, blue, green and black, plus prints alphanumerics. Built-in commands simplify drawing and plotting. Text mode prints 40 or 80 characters per line at 12 characters/sec. Software controls additional character sizes and rotation. U.L. listed.

Specifications: Paper Size: 4-1/2″ roll. Effective Plotting Range: X-axis – 3.8 inches (480 steps), Y-axis – no limit. Plot Speed: 2.05 inches per second. Print Speed: 12 characters per second. Characters per Line: 80 or 40 (text mode). Any size from 1 to 80 per line (graphics mode). Dimensions: 2-15/16 x 8-3/4 x 8-1/2″. Weight: 1-3/4 pounds. Power Requirements: 120VAC, 60 Hz, 23 Watts.

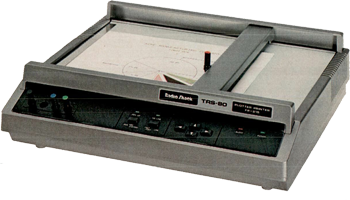

FP-215 Flatbed Plotter/Printer
$995.00 [RSC-11]

Create incredible printer graphics. It’s easy to produce pie charts, tables, maps, bar graphs and more using simple BASIC ASCII command codes and parameters.

Turn rows of numerical data into easy-to-understand graphics. ldeal for business information such as financial trends, production data and market forecasts. The FP-215 also prints both upper and lower case characters with the BASIC, LPRINT and LLlST commands. You can print in a horizontal or vertical format under hardware or software control.

Ready to Use. Because the FP-215 has both parallel and serial interfaces, it is compatible with all our TRS-80 desktop computers. Front panel controls include on/off-line, pen up/down and pen motion buttons and recessed pen storage wells. Performs single pen plotting, and pens can be changed easily to make muitiiolor plots. Red, blue, green and black pens included. features self-test and automatic print functions. U.L. Listed.

Specifications: Paper Size: 10-1/8 x 14-5/16 or 8 x 11-1/2″. Plot Size: 7.32 x 10.63″ or 8.5 x 11.73″. Plot Speed: 100 mm per second (3.93 ips). Step Size: 1 mm. Dimensions: 4-5/6 x 16-1/8 x 14-5/8″. Weight: 22 pounds. Power Requirements: 105-135VAC, 50/60 Hz, 90 Watts.


DWP-410
$1,495.00

Our new DWP-410 can produce hundreds of copies – each with that electric-typewriter “look”. Select 10 or 12 characters per inch, or proportional pitch. Features forward and reverse paper feed and 1/2-line feed, underling, boldface, and and programmable backspace.

You also get 1/120″ space and 1/48″ line feed. Automatic Paper Set makes paper insertion a breeze. Just place a sheet at the rear of the 15″ platten and pull the Autoset lever. paper automatically rolls up to the first line position. “External Program Mode” lets you use print wheels with different pitch or special characters. With Courier 10 print wheel and carbon ribbon cartridge . U.L. listed.

Specifications: Print Density: 13.6″ line. Switch selectable 10 cpi (136 characters per line), 12 cpi (163 cpi), or proportional spacing. Print Speed: 25 cps nominal; 11.7 lpm at 10 cpi, 132-column (Over 300 wpm). Carriage Motion: Unidirectional optimal motion seeking, 1000 ms slew rate. Character set: 124 (96 ASCII, plus special and international), 23 control codes. Paper: up to 16″ wide. Original, plus 5 copies. Friction feed. Ribbon: Multi-strike carbon or nylon cartridge. Interface: Standard 8 bit data parallel; 36-pin Amphenol connector. Dimensions: 7-3/4 x 23-3/4 x 13″. Weight: 35 lbs. Power: 120VAC, 50/60 Hz, 141 Watts.

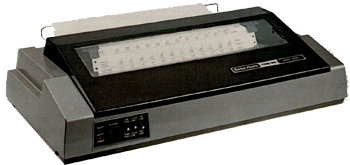

DMP-400
$1,195.00

Cover design aids in noise reduction. Line feed in 1/6, 1/8, 1/72, 1/216 increments. Tractor allows use of 4″ to 15″ fanfold paper. Friction platten for single-sheet paper. Prints original, plus two copies. Selectable parallel and serial interfaces (600/1200 baud). Paper Feed and Form Feed controls. On-Line indicator. U.L. listed.

Specifications: Print Speed: Standard 10 cpi – 181 lpm/20 col., 126 lpm/40 col., 78 lpm/80 col., 51 lpm/132 col.; Correspondence 10 cpi – 705 wpm. Pin Wire Diameter: 0.30mm. Horizontal Dot Resolution: 60-100 dots/inch, 792-1320 dots/line. Dimensions: 4-11/16 x 15-3/8 x 11″. Weight: 16-1/2 lbs. Power: 120VAC, 60 Hz, 85 Watts.


DMP-500
$1,795.00 [RSC-??]
$1,295.00 [RSC-11]

This hard worker is ideal for heavy business use. Logic-seeking head gives you fast speed and efficiency. Prints original, plus three copies. Adjustable tractor adjusts from 4″ to 15″. Line feed in 1/6, 1/8, 1/72, 1/216 increments.

Paper advance in fil-line increments for aligning preprinted forms. Paper Feed and Form Feed controls. On-Line indicator. Parallel interface – use with TRS-80 Model I, II, III or 16. U.L. listed.

Specifications: Print Speed: Standard 10 cpi – 293 lpm/20 col., 201 lpm/40 col., 119 lpm/80 col., 76 lpm/132 col.; Correspondence 10 cpi – 1043 wpm. Pin Wire Diameter: 0.30mm. Horizontal Dot Resolution: 60-100 dots/inch, 792-1320 dots/line. Dimensions: 7-11/16 x 24-5/8 x 15-7/8″. Weight: 50 lbs. Power: 120VAC, 60 Hz, 180 Watts.


DMP-100
$399.00

Prints high-density graphic information similar to that on the Color Computer screen (with optional screen print program). Features 480-byte full-line dot buffer, selectable parallel and serial interfaces (600/1200 baud) and adjustable tractor, 4-1/2 to 9-1/2″. Uses up to 9-1/2″ fanfold paper. With ribbon cassette. U.L. listed.

Specifications: Print Density: 5 or 10 characters per inch. Graphic Density: 60 x 63 dots per sq. in. Print Speed: 50 characters per second, 27 lines per minute. Character Set: 96 ASCII. Bit Image: 480 addressable, 7-dot columns. Dimensions: 5-5/16 x 16 x 8-1/4″. Weight: 8-3/5 lbs. Power: 120VAC, 60 Hz, 15 Watts.


DMP-200
$999.00 [RSC-??]
$699.00 [RSC-11]

A versatile, compact dot-matrix impact printer! Prints 80 characters at 10 pitch, 132 characters at 16.7 on an 8″ line. Features selectable parallel and serial interfaces (600/1200 baud). Line feed in 1/6, 1/8, 1/72 increments. On/Off Line, Restart and Paper Feed controls. Power-On indicator. U.L. listed.

Specifications: Print Density: Standard 10 spi – 104 lpm/20 col., 80 lpm/40 col., 55 lpm/80 col.; Correspondence 10 cpi – 520 wpm. Pin Wire Diameter: 0.35mm. Horizontal Dot Resolution: 60-100 dots/inch, 480-800 dots/line. Dimensions: 5 x 16-1/2 x 13-1/2″. Weight: 16-1/2 lbs. Power: 120VAC, 60 Hz, 85 Watts.


DMP-120
$499.95 [RSC-11]

Get a throughput speed faster than you thought possible from a printer priced this low! Ideal for data processing and general purpose use. Prints 80 upper and lower case 9 x 9 (9 x 8, plus underline) dot-matrix characters on an 8″ line-51 lines per minute at 10 characters per inch. Features underline capability, and elongated and condensed modes. Bit-image mode allows impressive graphics. too! Parallel, and Color Computer-compatible serial interlaces. U.L. listed.

Specifications: Print Density: 5, 10, 8.3, or 16.7 characters per inch. Graphic Density: 60 x 72 dots per sq. in. Print Speed:: Standard 10 cpi – 120 characters per second, 51 lines per minute. Character Set: 96 ASCII, plus international and block graphics characters. Line Feed: 1/6, 1/8, 1/12″. Dimensions: 5 x 16-1/2 x 13-1/2″. Weight: 16 lbs. Power: 120VAC, 60 Hz, 32 Watts.


DMP-2100
$1,995.00

A Radio Shack breakthrough! Delivers high-speed for data processing, high-resolution for dot-addressable graphics, plus a word processing mode with text that rivals Daisy Wheel printers! Prints 32,400 dots per square inch-over four times the finest resolution of our other dot-matrix printers!

Produces letter-quality characters in a single pass for maximum throughput. Change pitch and font within your text without having to stop and change a print-wheel! U.L. listed.

Specifications: Print Speed: Standard 10 cpi – 215 lpm/20 col., 151 lpm/40 col., 93 lpm/80 col., 60 lpm/132 col.; Correspondence 10 cpi – 774 wpm. Character Set: 96 ASCII, 31 international and 31 graphics characters. Print Density: 10, 12, 16.6 characters per inch, plus proportional-spaced and elongated. Paper: Up to 15″ wide. Friction-feed. Pin Wire Diameter: 0.2mm. Graphics Resolution: 32,400 dots/sq. in. Horizontal Dot Resolution: 180 dots/inch, 2448 dots/line. Maximum Vertical Resolution: 180 dots/inch. Line Feed: Forward – 1/120, 1/12, 1/8, 1/6, 2/15-inch, Reverse – 1/12, 1/6 inch. Dimensions: 5-7/8 x 21-11/16 x 15″. Weight: 44 lbs. Power: 120VAC, 60 Hz.


DWP-210
$799.00 [RSC-11]
$599.00 [RSC-12]

Features:

  • Prints over 200 Words Per Minute
  • Clean,Sharp Characters for That “Electric Typewriter Look”
  • Interchangeable 100-Character Print Wheels for a Variety of Styles
  • Ideal for Use with SCRIPSIT and SuperSCRIPSIT
  • Select 10 or 12 characters per inch, or proportional pitch. Print wheels simply “drop-in” for easy installation! Prints at 18 cps. Includes forward and reverse paper feed and 1/2-line feed, underline and programmable backspace. Self-test facility lets you see if printer is operating properly before starting. “Paper Empty” sensor stops printer automatically and sounds buzzer when paper runs out. “Ribbon End” feature stops printer when ribbon reaches its end. Automatic impact control prolongs the life of the print wheel. Paralell and Color Computer-compatible serial interfaces. U.L. listed.

Specifications: Print Density: 11.5″ line. Switch selectable 10 cpi (115 characters per line), 12 cpi (138 cpi), or proportional spacing. Print Speed: 18 cps nominal (over 200 wpm). Carriage Motion: Bi-directional optimal motion seeking. Minimum horizonatla increment 1/120″. Minimum vertical increment. 1/48″. 1000 ms slew rate. Character set: 100 (modified ASCII plus special international), 18 control codes. Paper: up to 13″ wide. Original, plus 2 copies. Friction feed. Ribbon: Multi-strike carbon or nylon cartridge. Interface: Color Computer-compatible serial (600/1200 baud) and standard 8-bit data parallel; 36-pin Amphenol connector. Dimensions: 6-5/16 x 20 x 13-11/16″. Weight: 38 lbs. Power: 120VAC, 60 Hz, 80 Watts.


TP-10
$99.95 [RSC-12]

Features:

  • Low-Cost Thermal Matrix Printer with Graphics
  • Ideal for the TRS-80 Color Computer
  • Prints Graphics and Alphanumerics
  • Whisper Quiet – Measures 3 x 8 x 5″

Prints 32 characters per line at 30 characters per second on 4-1/8″-wide thermal paper. Features include elongation mode for expanded print and a special repeat function to make graphics programming easier. Color Computer-compatible serial interface only. U.L. Listed.

Specifications: Print Density: 5, 10 cpi. Print Speed: 30 cps. Character Set: 96 ASCII, 16 graphics. Line Spacing: 1/6″. Dimensions: 3 x 8 x 5″. Weight: 3-1/2 lbs. Power: 5 “C” batteries or 120VAC, 60 Hz, 18W.


DMP-420
$999.00 [RSC-11]

Correspondence, data processing and bit-image graphics modes for many office applications. Prints 10, 12 or 16.7 characters per inch; 51 lines per minute at 10 cpi. Mode and pitch are switch or software selectable.

Original, plus two copies. Adjustable tractor uses 4″ to 15″ fanfold paper. Friction platen for single-sheets. Selectable parallel and Color Computer-compatible serial interfaces (600/1200 baud). U.L. listed.

Specifications: Print Speed: Standard 10 CPI – 181 ipm/20 col. 126 lpm/40 col. 78 lpm/80 col. 51 lpm/312 col. Correspondence 10 cpi – 705 wpm.Character set: 96 ASCII, 32 special, and 30 block characters. Pin Wire Diameters: 0.30 mm. Horizontal Dot Resolution: 60-100 dots/inch, 792-1320 dots/line. Line feed: Forward, reverse, 1/6, 1/8, 1/72, 1/216″. Buffer: 2K RAM. Dimensions: 6-3/8 x 24-1/8 x 13-3/8″. Weight: 16-1/2 lbs. Power: 120VAC, 60 Hz, 85 Watts.


CGP-220 Color Ink-Jet Printer
$699.00 [RSC-12]

A true price breakthrough in ink jet print technology. Quietly prints text and graphics in yellow, violet, red, green, cyan, magenta and blck! Prints 2600 dots/second in graphics mode with a resolution of 560 dots/line (monochrome) and 640 dots/line (multi-color mode).

An 80-column text mode give you 12 cpi at 37 characters per second in a 7 x 5 matrix. A screen print utility for the TRS-80 Color Computter and Tandy 2000 will allow multi-color printouts of color graphics screens produced from any graphics programs.

The CGP-220 jets ink only where you specify, mixing colors to produce seven vivid hues. There’s no ribbon to wear out or become contaimnated, so the print quality remains excellent. Supports elongated character set, variable pitch, character repetition and special characters. Programmable from BASIC. Parallel and Color Computer compatible serial interfaces. Uses 8-1/2″ paper. 4-1/4 x 15-3/4 x 11-5/8″. U.L. Listed.


DWP-510
$1495.00

Give your correspondence that clean, crisp “electric typewriter” look with this top-of-the-line formed-character printer. You can print fixed 10 to 12 characters per inch or choose proportional spacing (using appropriate optional print wheels). Prints up to 43 characters per second. Features forward and reverse paper feed and 1/2-line feed, backspace and underline.

Interchangeable print wheels snap in easily to give you different type styles. “External Program Mode” allows you to use print wheels with different pitch or special characters. Friction-feed 15″ platen can handle paper up to 16″ wide and adjusts for up to five carbons. Parallel interface only. U.L. listed.

Specifications: Print Density: 13.6″ line. Switch selectable 10 cpi (136 characters per line), 12 cpi (163 cpi), or proportional spacing. Print Speed: 43 cps nominal (over 500 wpm); 19.5 lpm at 10 cpi, 132 column. Carriage Motion: Unidirectional optimal motion seeking, 300 ms slew rate. Character set: 124 (96 ASCII plus special and international), 21 control codes. Paper: up to 16″ wide. Original, plus 5 copies. Friction feed. Ribbon: Multi-strike carbon or nylon cartridge. Interface: Standard 8-bit data parallel; 36-pin Amphenol connector. Dimensions: 8 x 24-1/2 x 15-1/2″. Weight: 28 lbs. Power: 120VAC, 60 Hz, 141 Watts.

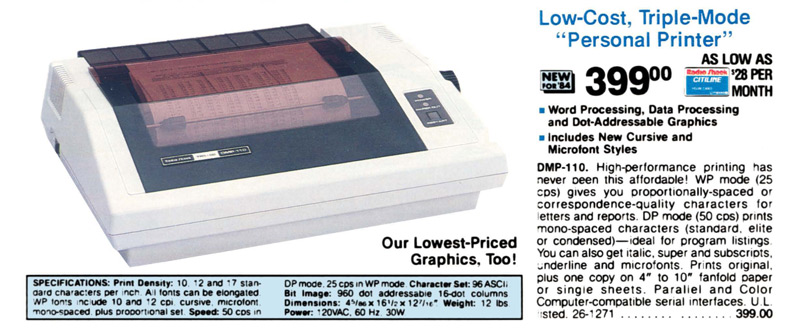

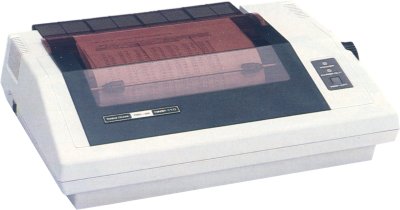

DMP-110
$399.95

RSC-??

Prints high-density graphic information similar to that on the Color Computer screen (with optional screen print program). Features 480-byte full-line dot buffer, selectable parallel and serial interfaces (600/1200 baud) and adjustable tractor, 4-1/2 to 9-1/2″.

Uses up to 9-1/2″ fanfold paper. With ribbon cassette. U.L. listed.

RSC-11

High-performance printing has never been this affordable! WP mode (25 cps) gives you proportionally-spaced or correspondence-quality characters for letters and reports. DP mode (50 cps) prints mono-spaced characters (standard, elite or condensed) – ideal for program listings. You can also get italic, super and subscripts, underline and microfonts. Prints original, plus one copy on 4″ to 10″ fanfold paper or single sheets. Parallel and Color Computer-compatible serial interfaces.

Specifications: Print Density: 10, 12 or 17 standard characters per inch. All fonts can be enlongated. WP fonts include 10 and 12 cpi, cursive, microfont, mono-spaced, plus proportional set. Speed:: 50 cps in DP mode, 25 cps in WP mode Character Set: 96 ASCII. Bit Image: 960 dot addressable, 16-dot columns. Dimensions: 4-5/16 x 16-1/2 x 12-7/16″. Weight: 12 lbs. Power: 120VAC, 60 Hz, 30 Watts.


DMP-2100P
$1,995.00 [RSC-12]

Features:

  • Accepts Downloadable Fonts
  • Word Processing Print Quality Rivals Daisv Wheel Printers
  • Prints 160 Characters/Second in DP Mode, 100 cps in WP Mode
  • Prints 60 Lines Per Minute

Includes a data processing mode for high-speed printouts. a single-pass word processing mode for letter-quality text, and a dot-addressable mode for graphics. Use the Font Editing Package (at left) to download different type styles (holds two at a time). Change pitch and font without stopping the printer. Precision 24-wire print head can produce 32.400 dots per square inch-over four times the finest resolution of our other dot-matrix printers! Parallel interface. U.L. listed.

Specifications: Print Density: 10, 12 and 16.7 cpi, plus proportionately spaced and enlongated. Print Speed: Standard 10 cpi – 93 lpm/80 column, 60 lpm/132 column. Correspondence 10 cpi – 40 lpm/132 column. Character Set: 96 ASCII, 31 international and 31 graphics ccharacters. Font Matrix: DP mode – 10 cpi and 16.7 cpi: 25 x (13 +5), 12 cpi, 24 x (13 + 2), WP mode – 10 cpi: 24 x 36, 12 cpi: 24 x 30, Proportional: 24 x n. Horizontal Dot Resolution: 360 dots/inch. 4896 dots/line. Paper:Up to 15″ wide. Friction feed. Prints original, plus two copies. Dimensions: 5-7/8 x 21-11/16 x 15″. Weight: 42 lbs. Power: 120VAC, 60 Hz.


TRP-100
$299.95 [RSC-12]

Features:

  • Compact, Portable Thermal Ribbon Printer
  • Use It Anywhere – Works on Batteries or AC Power (with included adapter)
  • Prints on Plain or Thermal Paper
  • Fast 50 cps 8 Bit-Image Graphics
  • IBM PC Compatible

New printing technology lets you use plain 8-1/2″ paper and thermal ribbon for high-contrast characters (uni-directional). Heat from the super-quiet thermal head transfers the image from ribbon to paper. Or use thermal roll paper without the ribbon for direct transfer (bi-directional). For best print quality, use Xerox 4024 or equivalent copier paper. Paralell and Color Computer-compatible serial interfaces. U.L. listed AC operation of five “C” alkaline or nickel cadmium batteries (not included).

Specifications: Print Density: 5, 10 cpi. Print Speed: 10 cpi – uni-directional; 16 lpm/80 col., bi-directional: 28 lpm/80 col. Character Set: 96 ASCII plus selectable Tandy standard, 64 special and 30 block graphics characters or Model 2000/IBM 128-character set. Horizontal Dot Resolution: 480-960 dots per line. Dimensions: 2-13/16 x 12 x 7″. Weight: 5-1/2 lbs. Power: 5 “C” batteries or 120VAC, 60 Hz.


DMP-105
$199.95 [RSC-12]

Features:

  • Prints 80 Characters Per Second
  • Produces Crisp 8 x 9 Dot-Matrix Characters on an 8″ Line

Another Radio Shack price breakthrough! ldeal for data processing and general purpose use. Bi-directional prints 80 upper and lower case characters per line at 43 lines per minute at 10 characters per inch. Elongated and condensed modes. Removable adjustable tractor uses 4 to 9-1/2″ fanfold paper, friction platen for single sheets. Prints original, plus one copy. Parallel and Color Computer-compatible serial interfaces. U.L. listed.

Specifications: Print Density: 10, 12, 16.7 cpi, plus elongated. Print Speed: 10 cpi – 43 lpm/80 col. Character Set: 96 ASCII, 64 special and 30 block graphics characters.. Horizontal Dot Resolution: 480-800 dots per line. Vertical Spacing: 12, 6, 8 lins per inch. Line Feed: 1/6, 1/8, 1/12, 1/72″. Dimensions: 3-1/16 x 15-3/8 x 9-7/16″. Weight: 8-3/4 lbs. Power: 120VAC, 60 Hz.


LMP-2150
$3,995.00 [RSC-12]

Features:

  • The First True Line Printer Compatible with Microcomputers
  • Excels in Data Processing and Busineas Graphics Applications
  • Incredibly Fast Throughput – Up to 150 Lines Per Minute
  • Outstanding Print Quallty in the Word Processing Mode
  • Ideal for Any TRS-XENIX Multi-User Office System
  • Reliable, Heavy-Duty Design
  • Easy Maintenance – Just Do a Simple Cleaning Every Six Months

A high-performance, all-in-one printer for business applications The patented heay duty hammerbank design prints crisp, clear characters one line at a time. Delivers superior quality – even in the data processing mode. The DP mode up to 150 lines per minute – that’s twice as fast as any of our other printers! The word processing mode prints up to 80 lines per minute and produces overlapping 10 x 12 dot-matrix characters for letter-quality statements and reports. The WP mode is code-compatible with Radio Shack word processing software (as well as other programs) for elonoated and bold characters, underlines, super and subscripts. The graphics mode is compatible with standard Radio Shack bit-image codes and allows generation of bar codes, enlarged characters, reverse images and more with the addition of appropriate software. Includes tractor with bottom feed for fanfold paper, labels and forms. Parallel interface. U.L. listed.

Specifications: Print Density: 10, 12.5 and 16.7 cpi(DP); 10 cpi (WP). Print Speed: Standard 10 cpi – 150 lpm/132 column (upper case), 120 lpm/132 column (upper/lower case). Correspondence 10 cpi – 80 lpm/132 column (upper case), 60 lpm/132 column (upper/lower case). Character Set: 94 ASCII, 32 American special, 32 European WP and 30 block graphics. Font Matrix: Upper case – 6 x 7 (DP), 10 x 9 (WP). Lower case – 6 x 9 (DP), 10 x 12 (WP). Horizontal Dot Resolution: 60-100 dots/inch. 72 dots/line. Dot Columns:792-1320. Paper: Fanfold – up to 16″ wide, up to six parts (with or without carbon). Prints original, plus five copies. Dimensions: 10-1/2 x 25-5/8 x 20-3/4″. Weight: 60 lbs. Power: 120VAC, 60 Hz.


DMP-430
$899.00

Never before has this much print quality been so affordable! The 18-wire print head gives you superior-quality correspondence fonts in a single pass. Prints 10, 12 or 16.7 cpi plus elongated standard, elite and condensed. Produces bit-image ,graphics at 7 or 16-bit columns.

Prints original, plus two copies. Parallel and Color Computer-compatible serial interfaces. U.L. listed.

Specifications: Print Density: 10, 12, 16.7, proportional-spaced, elongated and condensed. Print Speed: Standard 10 cpi – 93 lpm/80 col., 60 lpm/132 col. Correspondence: 10 cpi- 700+ wpm.Character Set: 96 ASCII, plus selectable Tandy standard, 64 special and 30 block graphics characters or full 128-character Model 2000/IBM set. Horizontal Dot Resolution: 60-240 dots/inch, 1584-2640 dot-cols./line. Dimensions: 4-3/4 x 22-7/16 x 13-3/4″. Weight: 27-1/2 lbs. Power: 120VAC, 60 Hz, 100 Watts.


DMP-130A
$359.95 [RSC-19]

Features word processing, data processing and dot-addressable graphics modes. Prints in four character styles: Standard or italic cursive in draft or correspondence modes. Supports superscripts, double-width, bold, double-strike and microfonts.

Bi-directional, logic-seeking print head (uni-directional in correspondence and graphics modes). Prints original, plus two copies on 4″ to 10″ fanfold paper or single sheets. Built-in tractor. Parallel and Color Computercompatible serial interfaces. U.L. listed.

Specifications: Print Density: Draft Quality – l0, 12 and 17 cpi (standard and italic cursive). Correspondence Quality – l0 and 12 cpi (standard and italic cursive). Speed: 60 to 120 cps (draft), 22 to 30 cps (correspondence). Character Set: 96 ASCII, plus Tandy or IBM special characters. Bit Image: 480 to 1920 dot columns/line. Dimensions: 4-3/4 x 15-3/8 x 10-1/2″. Weight: 10-3/4 lbs. Power: 120VAC. 60 Hz, 33W.


DWP-520
$995.00 [RSC-19]

Give your correspondence, reports and memos that clean, crisp “electric typewriter” look. You can print fixed 10 or 12 characters per inch or choose proportional spacing (using appropriate optional 96-character print wheels). Prints up to 43 characters per second.

Features forward and reverse paper feed and 1/2-line feed, backspace and underline. Supports boldface, strike-through, double-underline, super and subscripts. Parallel interface only. Includes Courier 10 print wheel and carbon ribbon. U.L. listed.

Specifications: Print Speed: 19.5 lpm at 10 cpi, 132 column. Carriage Motion: Unidirectional, optimal motion seeking. Character Set: 96 ASCII, plus special and international, 21 control codes. Paper: Up to 16″ wide. Original, plus 5 copies. Friction feed. Interface: Parallel. Dimensions: 8 x 24-1/2 x 15-1/2″. Weight: 28 lbs. Power: 120VAC, 60 Hz, 141 Walts.


DMP-106
$219.95 [RSC-19]

Another Radio Shack price breakthrough! Ideal for data processing and general-purpose use. Bi-directional – prints 80 upper and lower case characters per line (8 x 9 matrix) at 43 lines per minute at 10 characters per inch. Elongated and condensed modes.

Prints up to 80 characters per second. Removable adjustable tractor uses 4″ to 9-1/2″ fanfold paper, friction platen for single sheets. Prints original, plus one copy. Parallel and Color Computer-compatible serial interfaces. U.L. listed.

Specifications: Print Density: 10, 12, 16.7 cpi, plus elongated. Print Speed: 10 cpi – 43 lpm/80 col. Character Set: 96 ASCII, 64 special and 30 block graphics characters. Horizontal Dot Resolution: 480-800 dots per line. Vertical Spacing: 12, 6, 8 lines per inch. Line Feed: 1/6, 1/8, 1/12, n/72″. Dimensions: 3-1/16 x 15-3/8 x 9-7/16″. Weight: 8-3/4 lbs. Power: 120VAC, 60 Hz.


LP-1000
$2,199.00 [RSC-19]

Laser-sharp clarity rivals professional typeset quality! Features portrait and landscape modes, 10/12/16.7 characters per inch text and 300 x 300 dpi on a full 8-1/2 x 11″ page. Quietly prints up to six pages per minute. Optional downloadable custom fonts available.

Convenient front panel selection of program, fonts and type styles. Tandy, IBM, and HP LaserJet Plus compatible. UL listed. Includes Kit A and toner.

Specifications: Print Speed: 6 pages per minute. Resolution: 300 x 300 dots per inch. Printable area max. 8″ wide, 13-1/22″ long. Paper Size: Letter, legal, half-letter, A4, A5, B5, 4 – 8-1/2″ wide and 8-5/16 x 14″ long. Paper tray holds 150 sheets 20# bond max. Duty Cycle: 3000 sheets per month. Interfaces: Video, Centronics parallel. Dimensions: 8-5/64 x 16-1/16 x 16-15/32″. Weight: 37.5 lbs. Power: 120 VAC, 60 Hz.


DMP-440
$699.00 [RSC-19]

Superior speed and quality at a cost-effective price for many office printing needs. Download fonts with optional-extra font package. Prints 10,12 or 16.7 cpi plus elongated, elite, condensed and super/subcripts. 9-wire print head.

Produces bit-image graphics. Prints original, plus two copies. Automatic single-sheet positioning. Built-in adjustable tractor. Parallel and Color Computer-compatible serial interfaces. U.L. listed.

Specifications: Print Density: 10, 12, 16.7 cpi, plus elongated, elite and condensed. Print Speed: 10 cpi-152 lpm/80 col. Character Set: 96 ASCII, 64 special and 30 block graphics characters. Horizontal Dot Resolution: 816-3264 dots per line. Vertical Spacing: 12, 6, 8 lines per inch. Line Feed: 1/6, 1/8, 1/12, n/72″. Dimensions: 5-13/32 x 23-9/32 x 14-11/16. Weight: 17-5/8 lbs. Power: 120VAC, 60 Hz.


DMP-2120
$1,599.00 [RSC-19]

An ideal high-speed dot-matrix printer for demanding business applications. Use the Font Editing Packages (sold separately) to load different type styles for print quality that rivals a daisy wheel printer! Includes data processing, word processing and graphics modes.

Front panel selection of fonts, character sets and type styles. Prints up to 240 characters per second. Precision 24-wire print head. Includes built-in “push-type” tractor so a single form or fanfold sheet can be detached without waste. Optional four-color ribbon available. Centronics parallel interface only. U.L. listed.

Specifications: Print Density: 10, 12 and 16.7 cpi, plus proportionally spaced and elongated. Print Speed: Standard 10 cpi-121 lpm/80 column, 84 lpm/132 column. Correspondence 10 cpi-33 lpm/132 column. Character Set: 96 ASCII, 31 international and 31 graphics characters. Font Matrix: DP mode-10 cpi and 16.7 cpi: 24 x (13+5), 12 cpi: 24x(13+2). WP mode – 10 cpi: 24 x 36.12 cpi: 24 x 30, Proportional: 24 x n. Horizontal Dot Resolution: 360 dots/inch, 4896 dots/line. Paper: Up to 15″ wide. Friction feed. Prints original, plus two copies. Dimensions: 5-7/8 x 21-11/16 x 15″. Weight: 42 lbs. Power: 120VAC, 60 Hz.


DWP-230
$459.95 [RSC-19]

Select 10 or 12 characters per inch, or proportional pitch. Uses interchangeable 96-character print wheels. Prints at 20 cps. Includes forward and reverse paper feed and 1/2-line feed, underline and programmable backspace.

Self-test facility lets you see if printer is operating properly before starting. Automatic impact control prolongs the life of the print wheel. Parallel and Color Computer-compatible serial interfaces. Includes Courier 10 print wheel and carbon ribbon. U.L. listed.

Specifications: Carriage Motion: Bi-directional, optimal motion seeking. Character Set: 96 (modified ASCII, plus special international), 18 control codes. Paper: Up to 16″ wide. Original, plus 3 copies. Friction feed. Interface: Color Computer-compatible serial and parallel. Dimensions: 6-5/8 x 24-3/8 x 13-3/8″. Weight: 26 lbs. Power: 120VAC, 60 Hz, 60 Watts.


PC-695
$799.00 RSC-19

Plot pie charts, tables, maps, bar graphs and more. Ideal for business information such as financial trends, production data and market forecasts. Includes standard hard nib pens. Asynchronous RS-232C serial interface. U.L. listed.


TRS-80 Printer Add-On’s


DMP-2100/2100P Automatic Sheet Feeder
$995.00 [RSC-12]

DMP-2100/2100P Bi-Directional Tractor
$169.95 [RSC-12]

Bi-Directional Tractor Feed for Continuous Forms
$149.95 [RSC-11]
$119.95 [RSC-12]

Snap-on DWP-210 tractor feed makes your printer more efficient. Use fanfold paper, pin-fed labels and preprinted multi-part forms. Adjusts to 13″.


Tractor Feed for Continuous Forms
$289.95

Just snap into place to use fan-fold paper with your Daisy Wheel II! Ideal for printing labels, multi-part forms, and long data processing runs. Removes easily when single sheets are used. 6-3/8 x 20-3/8 x 13″.


Daisy Wheel II Bi-Directional Tractor Feed
$289.95 [RSC-11]
$219.95 [RSC-12]

RSC-11
Keeps pin-fed labels, preprinted and multipart forms in perfect alignment. Quick, easy installation. Adjusts to 15″.

RSC-12
Feeds fanfold paper automatically. Keeps pin-fed labels and forms in perfect alignment. Easy installation and removal. Adjusts to 15″.


Daisy Wheel II Auto Sheet Feeder
$1,495.00 [RSC-11]

Holds up to 200 sheets. Microprocessor-control gives proper alignment every time. Requires installation (not included).


DWP-410 Bi-Directional Tractor
$239.95 [RSC-11]

Bi-directional tractor feed fanfold paper autoamtically. Keeps pin-fed labels and forms in perfect alignment. Attaches quickly for easy installation and removal.


Daisy Wheel II Auto Envelope Feeder
$1,195.00 [RSC-11]

Automatically feeds envelopes into aligned typing position at up to 1200 per hour. Sizes 6 to 10. Requires installation (not included).


SF-510 Dual-Bin Automatic Sheet Feeder
$499.95

Printer Selector 2 Interface
$99.95 [RSC-19]

Stop plugging and unplugging printer cables! Now you can easily connect two printers to one computer or two computers to one printer, then automatically switch between them with our Printer Selector 2 Interface. Compatible with any standard parallel printer. Cables not included. UL listed.


TRS-80 Printer Furniture

Line Printer Stand
$99.00

Line Printer I and a number of others attach directly to the stand’s crossmembers through existing holes in their rubber feet. The “modesty panel” turns sideways to accomodate many popular 15″-wide printers (Not Line Printer III).


Universal Printer Stand
$99.00

This heavy-duty all-purpose printer stand is especially designed to match all TRS-80 systems. Sturdy, easily assembled.


Locking Casters for Printer Stand
$19.95

Fits Printer Stands 26-4307 and 26-1357. Set of 4.


Modular System Furniture – Printer Stand
$99.95

Large enough to accomodate wide-bed printers. Includes bottom-feed paper slot, unique swing-down paper catch for printed output and paper storage shelf. Adjustable glides. 27 x 28-1/2 x 19-1/2″


Line Printer III Stand
$139.00

Puts the printer right at your fingertips and frees desk space. Includes basket.


LMP-2150 Printer Stand
$149.95

We recommend using this stand with your LMP-2150 printer for best operating results.


Printer Stand
$149.95

Slotted top for bottom paper feed. Includes wire basket. Easy assembly. 27 x 24 x 19″.


TRS-80 Printer Consumables

Replacement Ink Pack – Black
$9.95

Blank Ink Pack for the CGP-220. Long-life ink pack provides approximately 3-4 million characters per color. Non-smearing.


Replacement Ink Pack – Color
$14.95

Tri-Color Ink Pack for the CGP-220. Long-life ink pack provides approximately 3-4 million characters per color. Non-smearing.


Paper for TP-10
$3.95 [RSC-12]

4-1/8″-wide thermal. Package of 2.


Roll Paper
$9.95

Pack of 3. Recommended for best print quality on the CGP-220.


Roll Paper
$4.95

Pack of 3. 4-1/2″ wide. 150-ft. long. For CGP-115.


Black Pens for CGP-115
$2.95

Set of 3.


Color Pens for CGP-115
$2.95

One each: red, green, blue.


8-1/2 x 11 Paper
$6.95

250 Sheets.


Fanfold Mailing Labels
$15.95 [RSC-11]

2-wide. 9-1/2″ carrier. Pressure-sensitive. Pkg./3000.


Stock Fanfold Printer Paper
Assorted
Assorted

Feed paper directly into the printer from the reusable cartons. Letter-size sheets (9-1/2 x 11″ and 12 x 8-1/2″) have “invisible” detachable, perforated margins. Single-part sheets ahre high-quality, 15-pound bond unless a heavier weight is specified. No ground wood or recycled paper. Multi-part sets are clean, carbonless, no-mess paper.


TRS-80 Printer Miscellaneous


Printer Dust Cover
$5.95

Line Printer V Dust Cover
$5.95 [CCF-832]

Durable vinyl with stiched seams. Form-fitting.

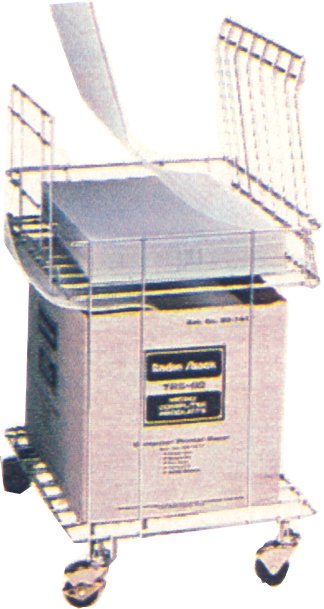

Mobile “Paper Caddy”
$79.95 [RSC-11]

Wheel paper to wherever you need it. Place blank forms on lower shelf; upper shelf catches printed output. Special paper guides assure correct refolding and smooth stacking of printout. 24-1/2 x 18 x 14-1/2″


PTC-64 Printer Controller
$249.95 [RSC-12]

Now you can print one job while working on another! Our PTC-64 “print buffer” accepts and stores information from your computer at top speed and feeds it to your printer as fast as the printer can handle it. This means excellent throughput and no downtime because your computer’s memory, processing power and disk drives are free tor other tasks.

The compact PTC-64 features a Z-80 microprocessor, a clear memory function, a pause function and a copy function for printing up io 100 consecutive originals. There are even 16 redefinable special characters, as well as unique programmable functions that will give you the option of downloading an alternate operating system to generate a new ASCII character set, graphics data and more. Activate functions from the panel keys or through software. Standard parallel printer interface. U.L. listed AC power module.


Daisy Wheel Printwheel Cleaning Kit
$16.95 [RSC-11]

Clean clogged, recessed type areas. Easy to use and won’t make a mess. For DW II, DWP-510, 410, and 210.

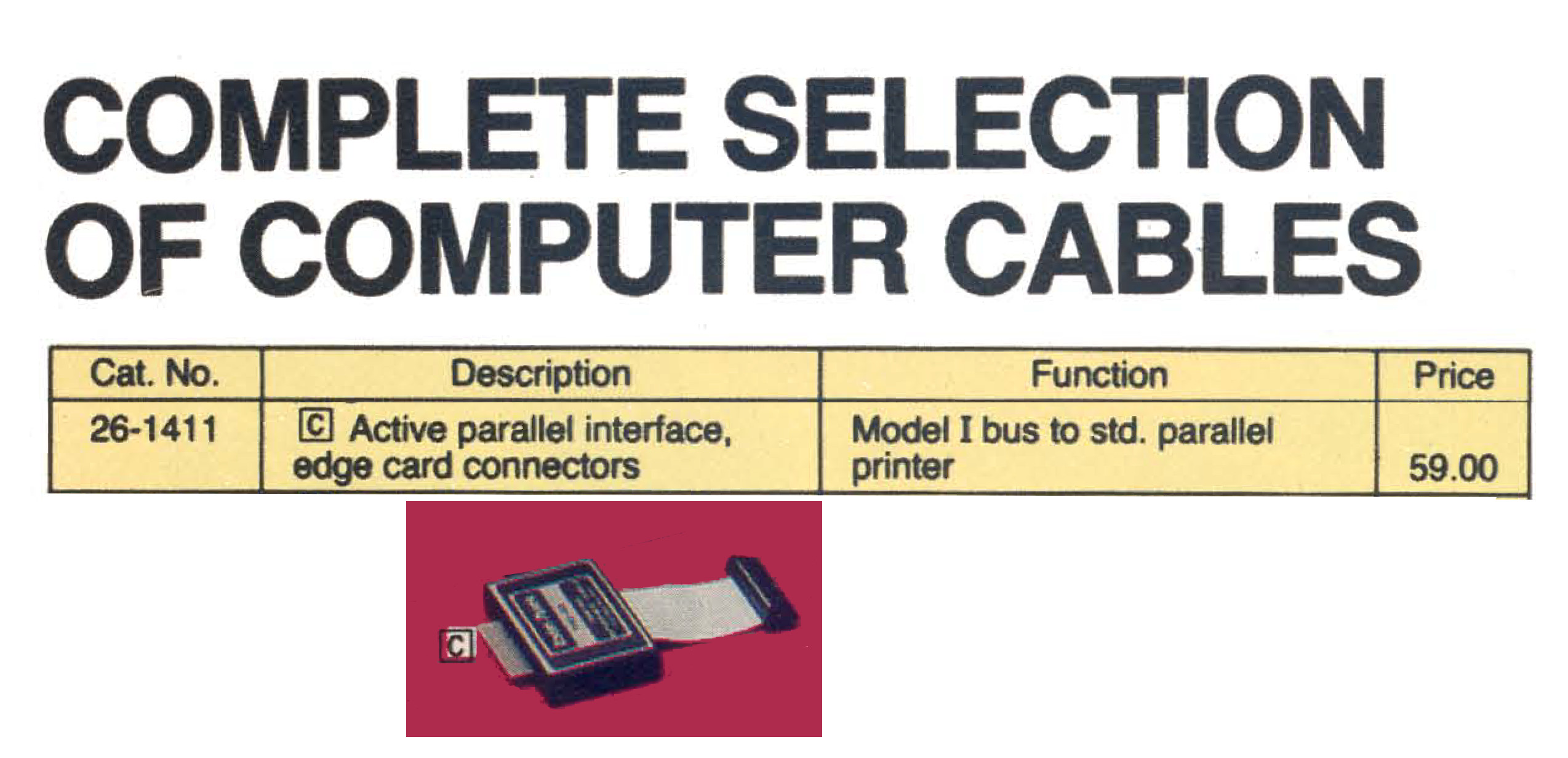

Printer Interface Cable
$59.00

Lets you add a complete hard copy system without using the Expansion Interface. Connects directly from the TRS-80 bus connector to the Quick Printer or Line Printer I.


Line Printer II Interface Cable
$59.00

Interfaces with Line Printer II without using the Expansion Interface. Connects directly to TRS-80 bus connector.


TRS-80 Acoustic Cover for Super-Quiet Printing
$399.00 [RSC-12]

Reduces Daisy Wheel II noise dramatically – ideal for office work areas! Cover lifts for easy access to your printer. 14 x 28 x 21-1/2″ – fits perfectly on our TRS-80 Printer Stands.

Silence distracting printer noise – ideal for office work areas. Lid lifts for easy access to printer. Fits on our printer stands. For DW II, DWP-510 (with or without tractor), DWP-410 and DWP-210 (without tractors). not for use with sheet or envelope feeders. 15 x 28 x 21-1/2″. U.L. Listed.


SW-302 Parallel Printer Switch
26-1498

Dual parallel ports for easy printer switching without changing cables. For any TRS-80 or data terminal with parallel interface capabilities. With power-on LED. 5 x 7-1/2 x 4″. U.L. listed. AC Power module. Cables not included.

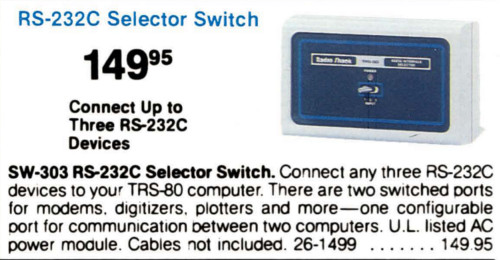

SW-303 RS-232C Selector Switch
$149.95 [RSC-12]

Two switched ports for modems, digitizers, plotters and more. The other port is configurable, allowing communication between two computers. For any TRS-80 with RS-232C. 5 x 7-1/2 x 4″. U.L. listed. AC power module. Cables not included.


Print Wheel Binder
$9.95 [RSC-11]

Protects up to nine printwheels from loss or damage.


Form De-Collator
$249.95 [RSC-11]

Manual decollator that’s faster and more reliable than most motor-driven models! Decollates up to 350 ft./min. Removable bobbin collects carbon. Includes attachment for carbonless forms. Handles paper up to 16-1/2″ wide.
